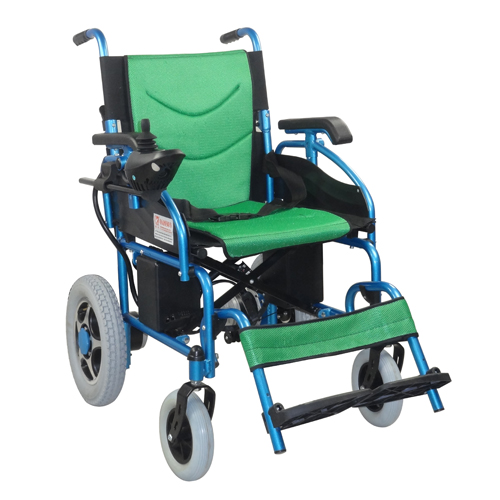

KL-DH3 Electric Wheelchair
Model:KL-DH3
Date:2018/12/12
Views:818
Hotline:0535-6823839
Similar Products
Next:KL-DLE2c Electric Wheelchair
Product Detail

Specification:

1.Britain PG controller and Taiwan worm reducer motors

2.Leather cushion with adjustable backrest

3.Height adjustable headrest

Demensions:

1.Overall(L×W×H)mm:1080×610×1210

Packiing(L×W×H)mm:930×630×960

Seat width:450

Seat depth:450

Seat to ground:600

2.4×6" solid front castors, 2×12"  PU solid drive wheels

3.Motor:24V/250W×2

4.Battery:12V/35AH×2, lead-acid

5.Charger:24V/5A

6.Controller:40A

7.Charging Time to full charge:8 hours

8.Max speed≤7km/h

9.Climbing ability:8°

10.Brake distence:1.5m

11.Range:up to 25km(varies with passenger weight)

12.Loading capacity:100kg

13.NW=94kg,GW:100kg
